USDA & FDA Approved Food-Grade Floor Systems for Processing Facilities
HACCP-certified, USDA and FDA approved floor systems engineered for food processing, beverage production, and pharmaceutical manufacturing environments.
The Floor Is a Critical Control Point in Your HACCP Plan
In food and beverage manufacturing, every surface that contacts or is adjacent to food production must be considered a potential source of contamination. Your floor is one of the highest-risk surfaces in the facility — constantly exposed to raw materials, processing byproducts, cleaning chemicals, forklift traffic, and the cyclic wet-dry conditions that promote microbial growth.
HACCP (Hazard Analysis Critical Control Points) frameworks require that facility surfaces be smooth, cleanable, non-porous, and free of harboring areas where bacteria, mold, and other microorganisms can colonize. A cracked, spalled, or improperly sealed floor fails these requirements and creates audit findings that threaten your certifications, your customer relationships, and ultimately your ability to operate.
Epoxy Flooring Pro has specialized in food and beverage facility floor systems for over fifteen years. Our crews work in USDA-inspected meat and poultry facilities, FDA-regulated beverage and packaged food plants, pharmaceutical production areas, commercial bakeries, and institutional kitchens. We understand the regulatory landscape, the performance requirements, and the installation discipline that food-safe flooring demands.
Regulatory Framework: USDA, FDA, and Third-Party Certifications
USDA Acceptance for Federally Inspected Facilities
Meat and poultry processing plants operating under USDA inspection (FSIS oversight) are subject to the strictest flooring requirements. The USDA reviews and approves substances used in federally inspected establishments through a formal acceptance process. We work exclusively with coating systems that hold current USDA acceptance documentation and can provide copies for your regulatory file.
FDA 21 CFR Compliance for Food Contact
For FDA-regulated facilities — including beverages, dietary supplements, and packaged foods — the applicable standard is 21 CFR (Code of Federal Regulations), which specifies which coating components are acceptable for incidental food contact. All systems we specify for food production areas comply with relevant 21 CFR sections. We provide the full regulatory documentation from the coating manufacturer for your records.
Third-Party Food Safety Certifications
Many food manufacturers operate under BRC, SQF, FSSC 22000, or AIB standards, each of which includes facility and infrastructure requirements for floors. We are familiar with the floor-related clauses of these standards and specify systems that satisfy the documentation and performance requirements auditors evaluate. We can review the specific clauses applicable to your certification standard before specifying.
System Selection by Zone: Not One Floor for the Whole Facility
The most common mistake in food facility floor specification is applying a single system throughout the entire facility. A single food processing plant may need three or four distinct floor systems based on zone conditions:

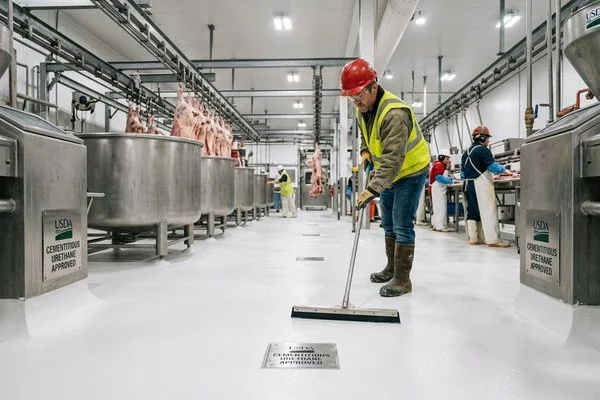

Wet Processing Zones (Primary Production)
Recommended system: Urethane cement, 3/8” to 1/2” thick with broadcast aggregate for slip resistance
These areas are subjected to the most demanding conditions: daily high-pressure hot water (140–180°F) or steam cleaning, significant thermal cycling between cold process temperatures and hot sanitation temperatures, continuous wet conditions, and exposure to organic acids, fats, blood, and sanitizing chemicals. Only urethane cement provides the thermal shock resistance and organic acid resistance these conditions require.

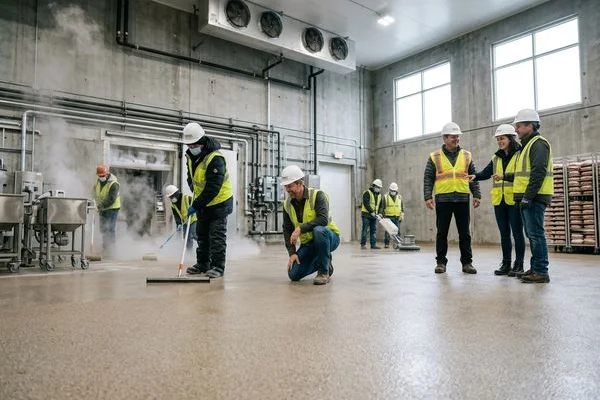

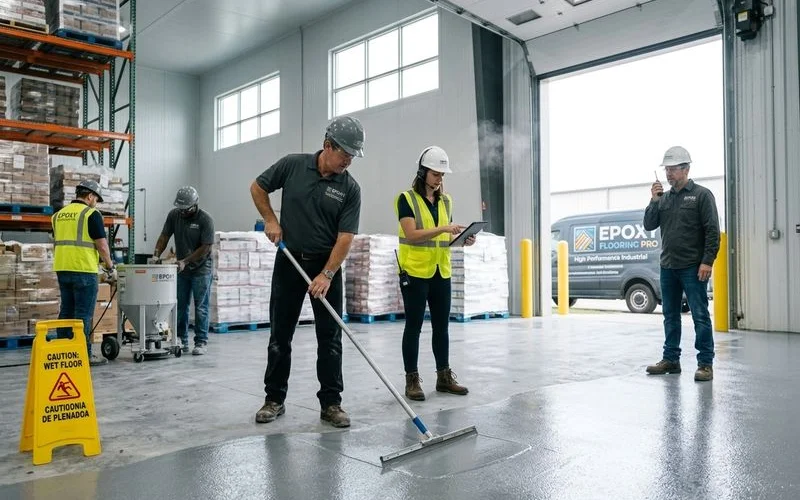

Refrigerated and Chilled Areas
Recommended system: Moisture-tolerant urethane cement or low-temperature epoxy mortar
Refrigerated areas present dual challenges: very low temperatures during operation and significant condensation during defrost or warm-up cycles. Standard epoxy systems often fail in refrigerated environments due to differential thermal expansion between the concrete slab and the coating. We specify systems validated for the specific temperature ranges in your cold chain areas.

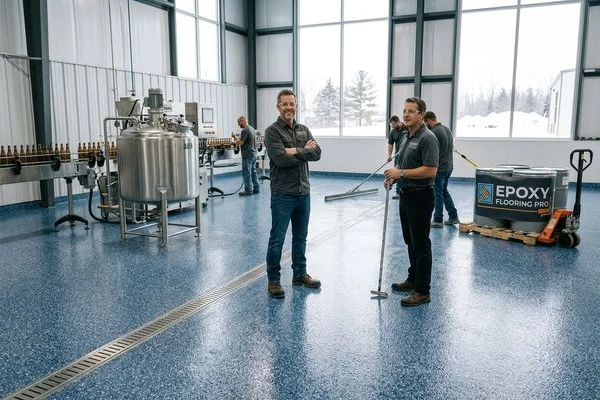

Dry Production and Packaging Areas
Recommended system: 100% solids epoxy with topcoat, or polished concrete with guard
Where thermal shock and organic acids are not present, 100% solids epoxy systems provide excellent durability and chemical resistance at lower cost than urethane cement. These areas benefit from smooth, seamless surfaces that are easy to sweep and mop, bright reflective colors that improve light levels and cleanliness perception, and optional color coding for zone demarcation and 5S compliance.
Loading Docks and Receiving Areas
Recommended system: Heavy-duty epoxy mortar or urethane cement with anti-slip aggregate
Receiving and shipping areas experience extreme point loading from pallet jacks, forklifts, and trailer leveler plates. They also experience significant temperature variation and moisture from outdoor exposure. These areas require impact-resistant mortar systems with adequate thickness to resist the point loading of steel-wheeled equipment.

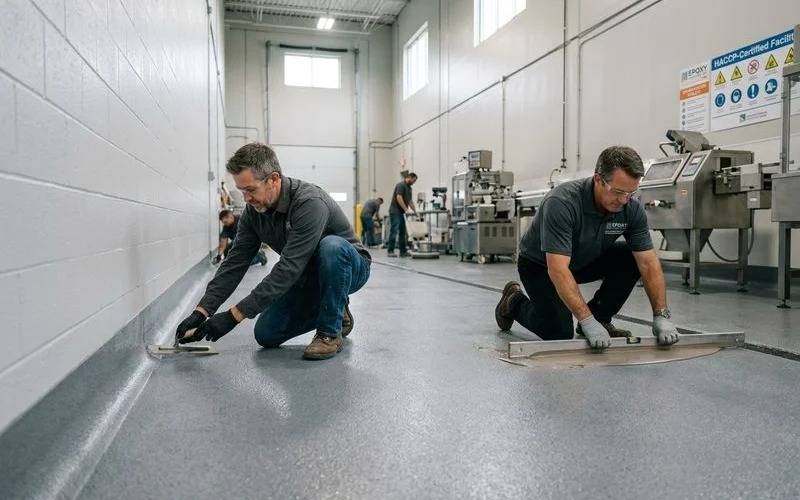

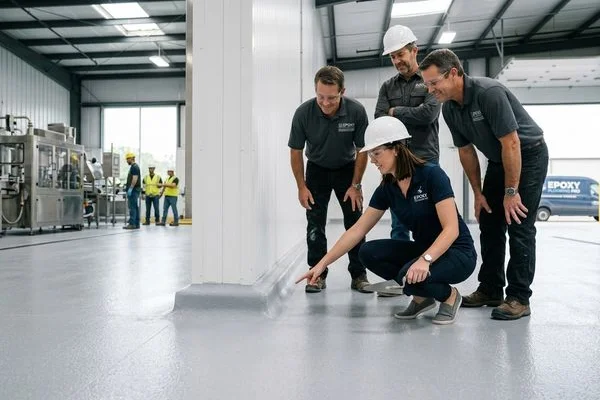

The Coved Skirting Detail: Where Most Food Facility Floors Fail
The transition between the floor and the wall is the highest-risk location for harboring point creation in food facilities. A conventional square-profile junction between floor and wall creates an inaccessible ledge where cleaning tools cannot reach, organic material accumulates, and microorganisms colonize rapidly.
The solution is coved skirting: a radiused fillet transition that slopes the floor surface continuously up the wall face, typically to a height of 4–6 inches, using the same material as the primary floor system. The radius (typically 50mm) allows cleaning tools to reach and clean the entire transition without leaving a dead zone.
Coved skirting must be applied at:
- All exterior walls throughout food processing zones
- All structural columns within processing zones
- All equipment bases and plinths that cannot be moved
- Floor transitions to floor drains and drain channels
Our crews use factory-formed cove tools to ensure consistent radius and height throughout the installation. We have seen many food facility floors fail at coved skirting transitions because the cove was applied by hand without proper tooling, resulting in inconsistent radius, improper bond to the wall surface, or gaps at the top edge that allow water and organic material to penetrate.
Slip Resistance in Wet Processing Environments
Food processing environments with wet floors, organic material, and workers in rubber boots present a significant slip-and-fall risk. OSHA requires that walking surfaces be kept clean and free of slip hazards; HACCP protocols require that floor surfaces be cleanable. These requirements are not in conflict, but they must both be satisfied simultaneously.
We achieve the correct balance through:

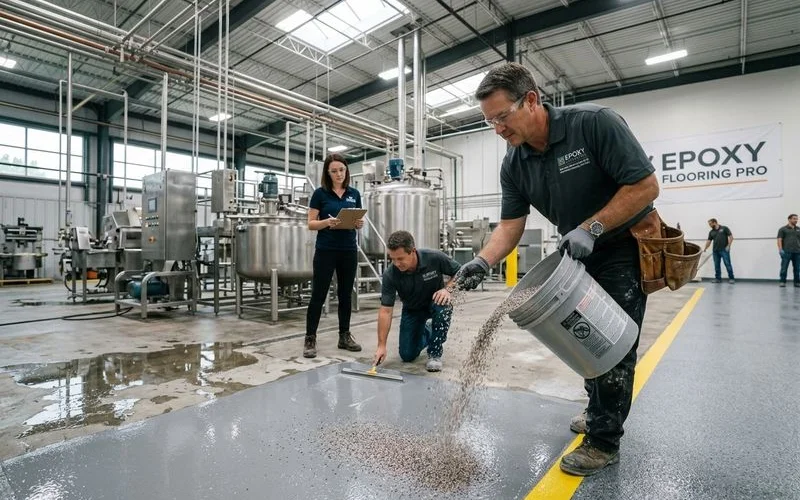

Broadcast aggregate systems: Aluminum oxide or silicon carbide aggregate broadcast into the wet floor coating provides texture for slip resistance while maintaining a closed surface that is cleanable and non-harboring. The aggregate profile, coverage rate, and topcoat application sequence determine both the slip resistance level and the cleanability of the finished surface.
Anti-slip topcoats: Some applications — drain channel side walls, ramps, and specific high-risk zones — receive anti-slip topcoat formulations with measured coefficients of friction (COF). We target COF values per ANSI A137.1 recommendations for the specific application.
Sanitation Compatibility: Chemical Resistance That Matters in Food Facilities
The sanitizing chemicals used in food facilities — quaternary ammonium compounds, peroxyacetic acid, sodium hypochlorite (bleach), caustic soda (NaOH), and phosphoric acid — are highly aggressive. Coating systems specified for food facilities must demonstrate specific chemical resistance to these substances at the concentrations and temperatures used in your sanitation protocol.
We obtain and review chemical resistance data from coating manufacturers for your specific sanitation chemicals before specifying. We have encountered coating systems marketed as “food safe” that are not resistant to the sanitizer concentrations used in the client’s CIP process — a problem that causes rapid coating degradation and potential food safety concerns as coating material enters the product stream.
For facilities where chemical resistance is particularly demanding — high-concentration acid or caustic CIP systems, for example — we specify novolac epoxy or vinyl ester topcoats that offer significantly higher chemical resistance than standard epoxy chemistry.
Contact our food facility flooring specialists to schedule a zone-by-zone assessment of your facility and receive a HACCP-aligned floor specification with full regulatory documentation.
What's Included
Our Food & Beverage Flooring Installation Process
Facility Assessment and Compliance Review
Our project team conducts a detailed facility assessment covering zone classification (wet/dry, processing/non-processing), drain locations and flow patterns, temperature exposure ranges including steam cleaning and CIP cycles, chemical exposure profile (sanitizers, acids, fats), and existing floor condition. We document regulatory requirements applicable to your facility type before specifying any system.
Zone-Specific System Specification
Food facilities rarely have uniform conditions throughout. Wet processing areas, refrigerated zones, dry storage, receiving docks, and employee welfare areas each require different system properties. We develop a zone-by-zone specification that applies the appropriate product in each area — urethane cement in steam-cleaned wet zones, 100% solids epoxy in dry production areas, anti-slip broadcast systems in high-traffic pedestrian zones.
HACCP-Protocol Surface Preparation
All surface preparation in food production facilities follows HACCP-aligned protocols. Equipment is cleaned between operations to prevent cross-contamination. Shot blasting equipment is containerized to control media. All chemical prep materials are food-safe rated. Substrate moisture and pH are documented. The preparation area is kept isolated from active food production zones throughout the project.

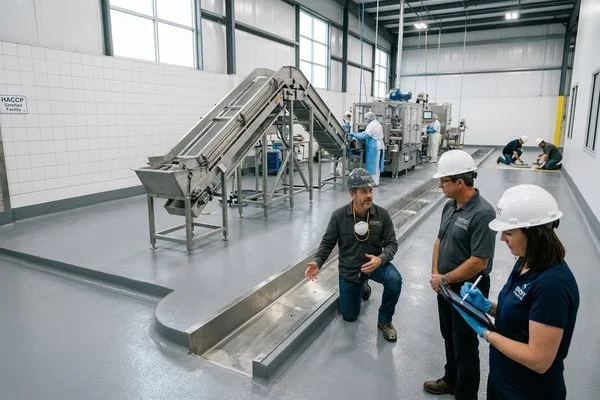

Drain and Cove Installation
Drains are properly integrated into the floor system with sloped transitions that direct water to drains without pooling. Coved skirting at all wall, column, and equipment base junctions is installed using the same floor system material, creating a fully seamless, cleanable transition that eliminates the harboring areas that grow microorganisms in conventional square-profile floor-wall junctions.
Primary System Application
The primary floor system is applied following manufacturer protocols for temperature, humidity, and pot life. Food-grade pigments and antimicrobial additives are blended at factory-verified concentrations. Film thickness is monitored at each stage and documented. All application equipment is maintained clean and free of contaminants throughout the installation.
Compliance Documentation and Inspection
Upon completion, we provide a full compliance package including product data sheets confirming USDA/FDA approval status, application records with lot numbers and batch quantities, photographic documentation of all stages, moisture testing records, and inspection confirmation. This documentation supports your HACCP audit records and facility certification requirements.
Why Choose Epoxy Flooring Pro
Food Safety Protocol Training
Our crews who work in food and pharmaceutical facilities complete food safety awareness training before entering any food-contact area. We understand HACCP principles, GMP requirements, and how installation activities must be managed to avoid contaminating food production environments.
Approved Product Inventory
We maintain an inventory of USDA/FDA-approved coating systems from multiple manufacturers, ensuring product availability and the ability to match the right system to your specific facility requirements — not just whatever single product one manufacturer sells.
Cove and Drain Expertise
Coved skirting and drain integration are the highest-failure-risk details in food facility flooring. Our crews are specifically trained and practiced in these details. We use correct cove tools, maintain consistent radius and height, and fully integrate the cove into the floor system to ensure a truly seamless, monolithic surface.
Thermal Shock Testing
We only specify systems with documented thermal shock resistance tested to the actual temperature ranges in your facility. Many epoxy products claim chemical resistance but are not rated for the 50–200°F thermal cycling common in food processing environments. We verify performance data before specifying.
Experience Across Food Sectors
We have installed food-grade floor systems in meat processing, poultry processing, dairy production, beverage manufacturing, commercial bakeries, pharmaceutical production, and institutional kitchens. This cross-sector experience means we understand the specific demands of your facility type before the project begins.
Project Gallery
Before & After

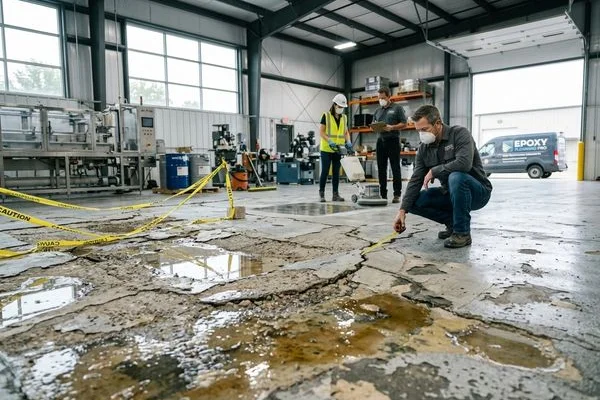

Before

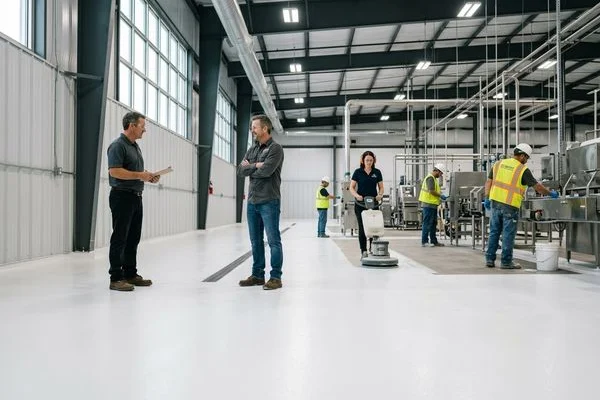

After
What Our Clients Say
"Our USDA-inspected meat processing plant had failed two previous floor installations before we called Epoxy Flooring Pro. Their team understood our compliance requirements immediately, specified the correct urethane cement system with proper coved skirting, and completed the installation during our scheduled plant shutdown. We passed the follow-up USDA inspection with zero floor-related findings. Finally, a contractor who understands food facilities."
"The coved skirting detail is everything in a food facility — if it's done wrong, you have a bacteria harborage point that auditors flag immediately. Epoxy Flooring Pro's crew was meticulous about every cove transition. Our SQF auditor specifically commented on the quality of the floor installation during our last audit. Worth every dollar."
"We needed a floor system that could handle daily high-pressure steam cleaning, forklift traffic, and incidental contact with dairy products. The thermal shock-resistant urethane cement system they specified has held up for 20 months of continuous production. The non-porous surface cleans in minutes. Genuinely impressive product knowledge from their team."
Frequently Asked Questions
What does USDA approved mean for a floor coating, and is it required for my facility?
Why is urethane cement preferred over epoxy in wet food processing areas?
Can the floor be installed while the facility is in partial operation?
How do you handle floor-to-drain transitions without creating bacteria harboring points?
What antimicrobial options are available and are they FDA approved?
