Certified ESD & Conductive Floor Systems for Your Facility

Why ESD Flooring Failures Are Never Just a Flooring Problem

When an electrostatic discharge event damages a circuit board, contaminates a pharmaceutical batch, or triggers an ignition event in a flammable environment, the flooring is rarely the first thing investigated. But in a high percentage of ESD-related incidents, the floor — or more precisely, the failure of the floor system to reliably dissipate static charge to ground — is a contributing factor.

Standard epoxy floors conduct static unpredictably. Without a properly installed grounding grid and a coating system with verified, stable resistance values, the floor may perform adequately on the day of installation and drift out of specification within 18 months as the conductive additives degrade, the grounding connections loosen, or the topcoat accumulates surface contamination — a common cause of failing floor coatings.

Epoxy Flooring Pro designs, installs, and certifies ESD floor systems engineered to hold their resistance specification reliably — not just at installation, but across the operational lifespan of the system.

Understanding ESD Floor System Requirements

Resistance Classification

The first decision in ESD floor specification is the required resistance range:

Conductive flooring (Rg < 1×10^6 Ω) is used in environments where rapid charge dissipation is critical — explosive handling areas, certain semiconductor processes, and environments where charge accumulation of any level is unacceptable.

Static dissipative flooring (Rg 1×10^6 to 1×10^9 Ω) provides controlled, slower dissipation that prevents damaging discharge events while avoiding the rapid discharge that could itself damage sensitive components. This range is appropriate for most electronics manufacturing, PCB assembly, and pharmaceutical environments.

The appropriate range is determined by your ESD control program specification, the sensitivity of your devices (ESDS classification), and the guidance of your ESD coordinator. We work from your specification — we do not guess.

Why Grounding Grids Are Non-Negotiable

Many ESD floor failures trace directly to inadequate grounding rather than coating failure. An ESD coating without a properly designed and installed grounding grid is like a drain pipe without a sewer connection — the path to ground simply does not exist in a reliable, measurable way.

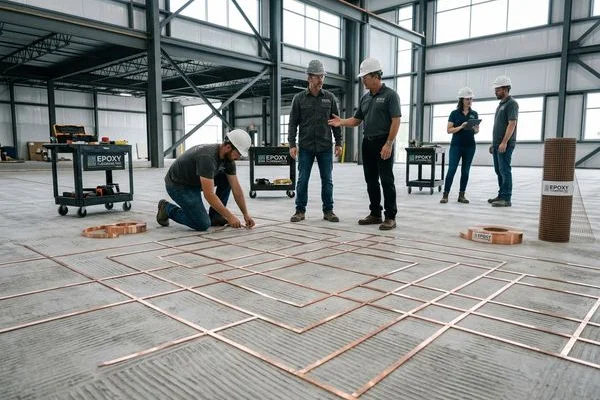

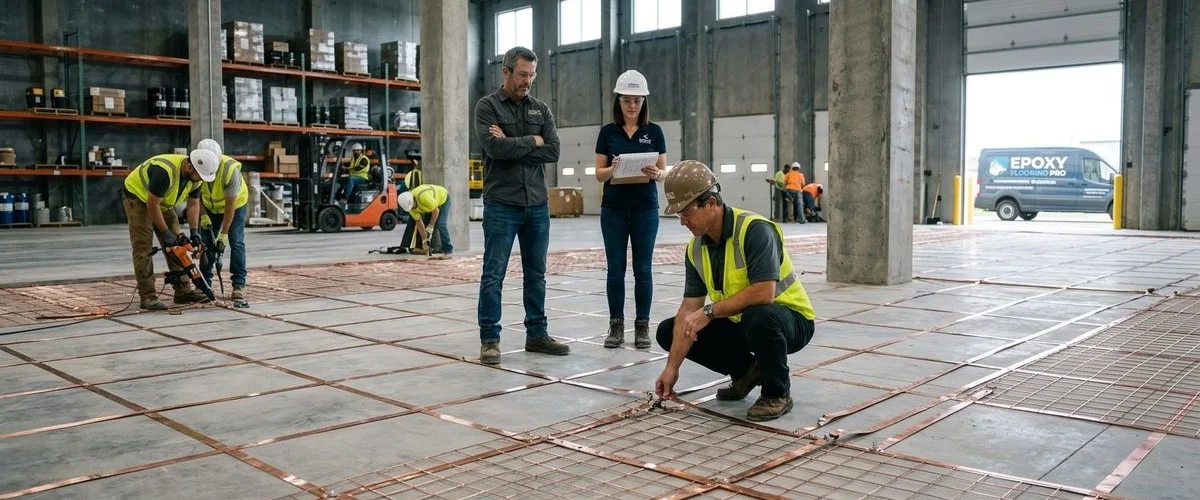

Our copper grounding grid installations use high-conductivity copper tape installed in a grid pattern beneath the coating system. The grid is connected to the facility electrical ground system, providing a true, measurable, reliable path to ground from every point on the floor surface. The resistance from any location on the floor to ground is tested and documented before project closeout.

The ESD Floor System Stack

Conductive Primer

The primer layer serves two functions: it fills the concrete surface profile and provides the initial conductive pathway connecting the topcoat to the grounding grid below. We use two-component epoxy conductive primers that cure to a stable, verified resistance range and provide the adhesion foundation for the system above.

ESD Intermediate Coat

For thicker systems or environments requiring chemical resistance, an ESD-rated intermediate coat builds mil thickness while maintaining conductivity continuity throughout the coating stack. This layer is particularly important in environments with heavy chemical exposure or high abrasion.

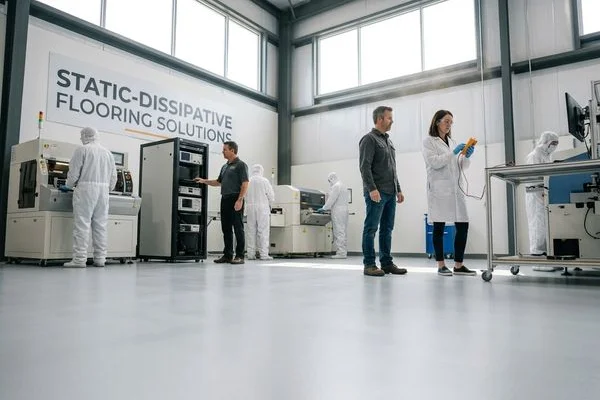

Static-Dissipative Topcoat

The topcoat is the surface layer — it takes the wear, the cleaning chemistry, and the physical contact from feet, carts, and equipment. Our static-dissipative topcoats are formulated to maintain their resistance values across the expected service life, resist the cleaning agents used in your facility, and provide the surface hardness needed for your traffic loads.

Certified Testing and Documentation

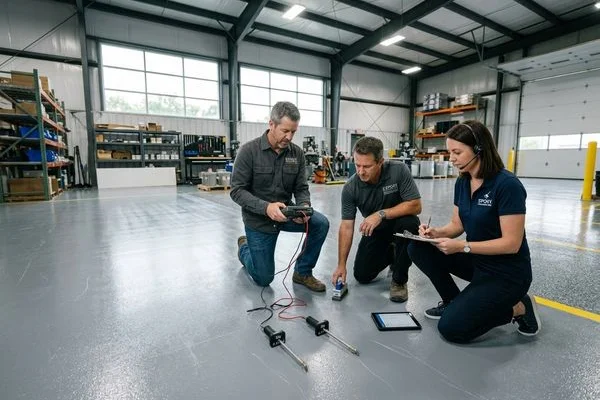

An ESD floor that cannot be verified is not a compliant ESD floor. Every installation we complete is tested per ANSI/ESD S7.1 using calibrated megohmmeter equipment. Testing is performed across a systematic grid pattern that covers the entire floor area, and all readings are documented in a formal test report that includes:

• Point-to-point resistance readings (Rp-p) at all test locations
• Resistance to groundable point readings (Rg) at all test locations
• Pass/fail determination against your specified resistance range
• Photographs of test setup and floor condition
• Project information, date, and tester credentials

This documentation integrates directly into your ANSI/ESD S20.20 ESD control program documentation set.

Applications We Serve

Our ESD flooring installations span the range of static-sensitive environments in Michigan:

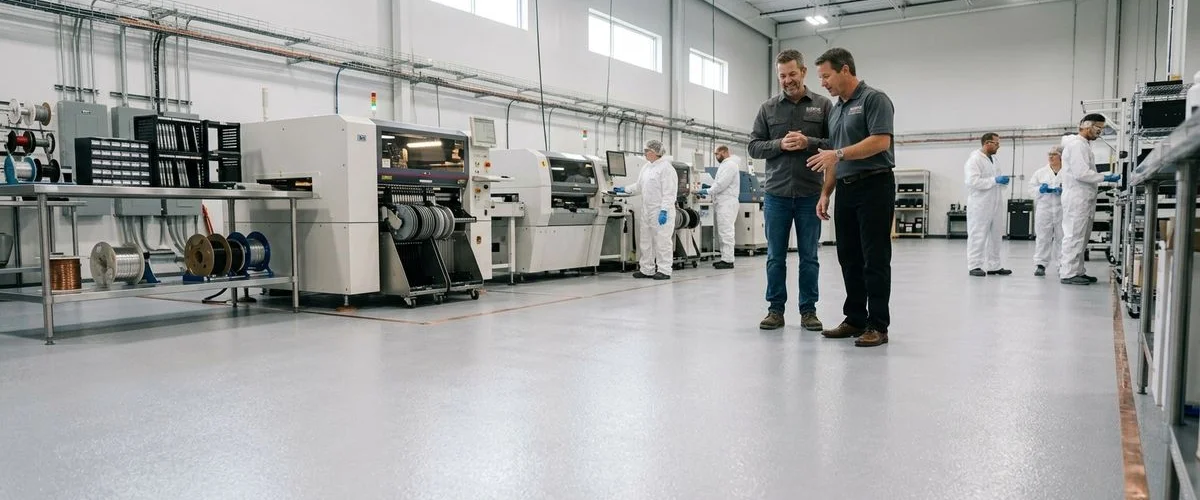

Electronics Manufacturing: PCB assembly, SMT lines, conformal coating, and test areas where ESDS components are handled.

Semiconductor and Microelectronics: Wafer handling, die bonding, and packaging areas requiring the tightest resistance control.

Pharmaceutical Manufacturing: Environments where static charge can cause powder agglomeration, contamination events, or attract particles in cleanroom-classified areas.

Aerospace and Defense: MIL-STD-1686 compliant environments for avionic component assembly and test.

Data Centers and Server Rooms: Equipment staging and installation areas where static discharge could damage rack-mounted hardware.

Contact Epoxy Flooring Pro for a static control flooring assessment. We will specify the right system, install it correctly, and give you the documentation your ESD program requires.
