Expert Solutions for Chemical-Damaged Industrial Floors

When Standard Epoxy Is the Wrong Answer

Walk into a plating shop, a battery manufacturing cell, or a chemical processing bay and propose a standard bisphenol-A epoxy floor system. Any experienced coating contractor will tell you the same thing: it will not last. Standard epoxy has a well-documented limitation — it performs adequately in mild chemical environments and fails relatively quickly in environments with concentrated acids, aggressive solvents, or elevated-temperature chemical exposure.

The concrete beneath those environments tells the story of what happens when the wrong floor system is specified or the floor is left unprotected entirely: pitting, surface erosion, aggregate exposure, and in severe cases, structural deterioration of the concrete slab itself. Chemical attack is cumulative. Every contact event that is not intercepted by a chemical-resistant barrier is contact between the aggressive chemical and the concrete matrix.

Epoxy Flooring Pro repairs concrete damaged by chemical attack and installs the correct protective system to prevent recurrence — novolac epoxy or vinyl ester, specified against your actual chemical exposure, with secondary containment integration where required.

Understanding Chemical Resistance: Why Resin Chemistry Matters

Standard Bisphenol-A Epoxy

Standard epoxy resins — the chemistry used in most general-purpose industrial floor coatings — provide good chemical resistance to mild acids, mild alkalis, and some solvents. They are appropriate for environments with incidental chemical contact, dilute cleaning chemicals, and mild service conditions. They are not appropriate for environments with concentrated acids, aggressive organic solvents, or sustained chemical immersion.

Novolac Epoxy

Epoxy novolac resins are produced by reacting epoxy with phenol formaldehyde novolac resin, producing a resin with a much higher crosslink density than standard epoxy. This dense crosslink structure is what delivers the performance improvement: higher chemical resistance, higher heat resistance, and better long-term stability in aggressive environments.

Novolac epoxy floor systems are the standard recommendation for:

• Sulfuric acid environments (battery manufacturing, plating, anodizing)
• Nitric acid and mixed acid environments (chemical processing, laboratory)
• Organic solvent environments (pharmaceutical, chemical manufacturing)
• Elevated temperature service up to approximately 180°F under most chemical exposures
• Aggressive cleaning chemical environments (strong alkali CIP systems in food processing)

Vinyl Ester

Vinyl ester resin systems provide the highest level of chemical resistance available in a floor coating system. Where novolac epoxy provides excellent resistance to many aggressive chemicals, vinyl ester extends that resistance to chemicals that challenge even novolac — concentrated hydrochloric acid, chromic acid, many organic solvents at elevated temperatures, and bleach at high concentrations.

Vinyl ester systems are thicker, more complex to install, and more expensive than novolac epoxy. They are specified when the chemical exposure analysis indicates novolac epoxy has a resistance limitation for one or more of the site’s specific chemicals.

Chemical Resistance Charting: Engineering Before Installation

Every chemical-resistant flooring specification we produce is preceded by a chemical resistance analysis. We collect your complete chemical inventory — every chemical that contacts or may contact the floor surface, with concentration and temperature information — and cross-reference it against manufacturer chemical resistance charts.

The output is a documented confirmation (or disconfirmation) of resistance for each specific chemical. If a chemical falls outside the specified system’s resistance range, we know before installation — not after failure.

This documentation serves multiple purposes: it confirms the system is appropriate before we proceed, it provides a technical basis for the system selection, and it gives you a record for your safety and regulatory compliance documentation.

Concrete Rehabilitation: Repairing What the Chemicals Have Already Done

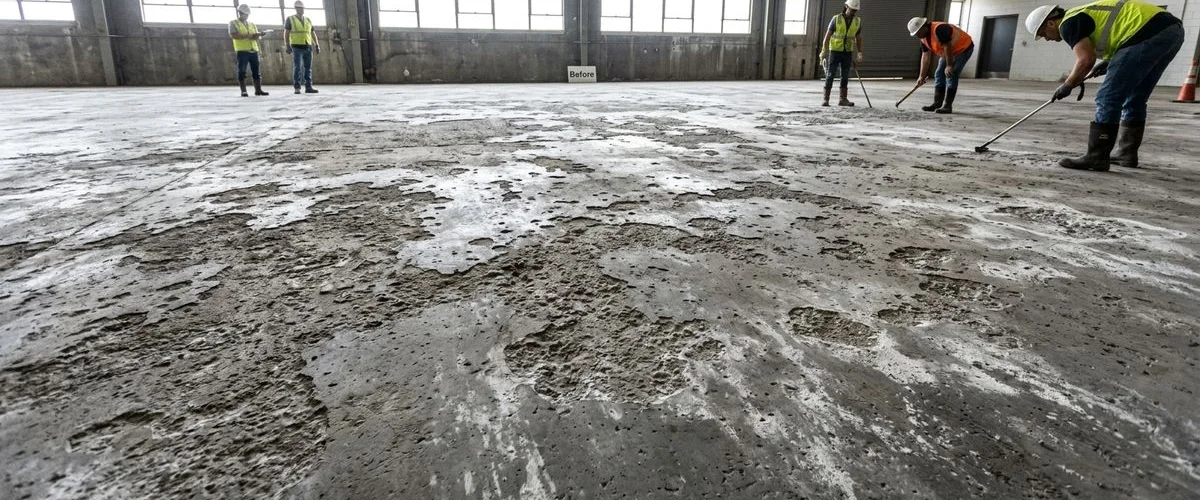

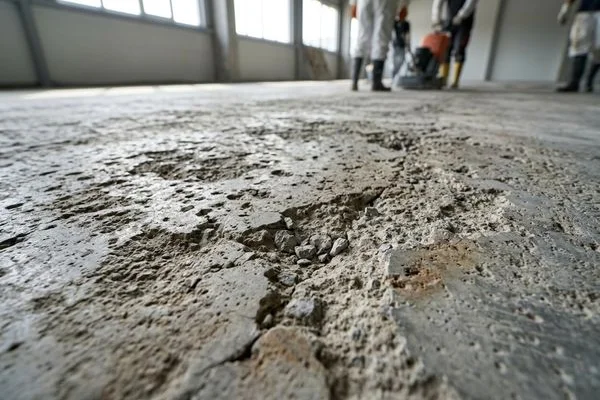

Concrete that has been exposed to acids without adequate protection typically presents with:

Surface etching: The cement matrix dissolves, leaving aggregate exposed and the surface rough, weak, and highly absorbent. Moderate etching can be corrected by shot blasting to remove the damaged surface layer and achieve the required surface profile.

Pitting and cratering: More advanced acid attack creates pits and craters as the cement matrix dissolves unevenly, particularly around aggregate particles. These must be filled with epoxy or cementitious repair mortar to create a smooth, sound substrate before coating application.

Deep structural damage: In severely neglected environments, acid attack can penetrate several inches into the concrete, weakening the structural slab. Assessment of structural integrity is required before coating decisions are made. In some cases, partial slab replacement is necessary before coating.

We assess the extent of damage honestly and recommend the appropriate repair approach — not the cheapest path that leaves the problem inadequately addressed.

Secondary Containment: The Complete Chemical Management System

A chemical-resistant floor coating protects the concrete. Secondary containment manages spills so they do not reach unprotected areas. The two systems work together to create a complete chemical management zone.

Our secondary containment installations use the same chemical-resistant system as the floor coating — novolac epoxy or vinyl ester — applied continuously from the floor surface up the containment berm and into the sump area. The cove base transition at the wall-to-floor joint receives the same treatment.

The result is a containment zone with no unprotected joints, transitions, or surfaces — a seamless chemical management system that intercepts every spill and directs it to a controlled sump for recovery or disposal.

Contact Epoxy Flooring Pro to discuss your chemical exposure profile. We will specify the right system, document the chemical resistance basis, repair your damaged concrete, and install a floor that protects your facility for the long term.
